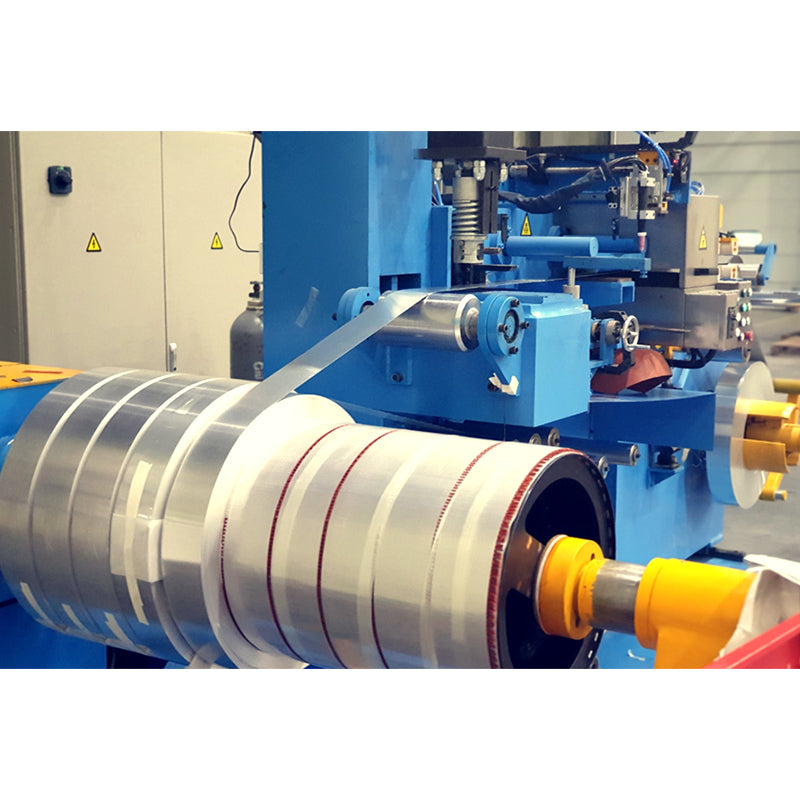

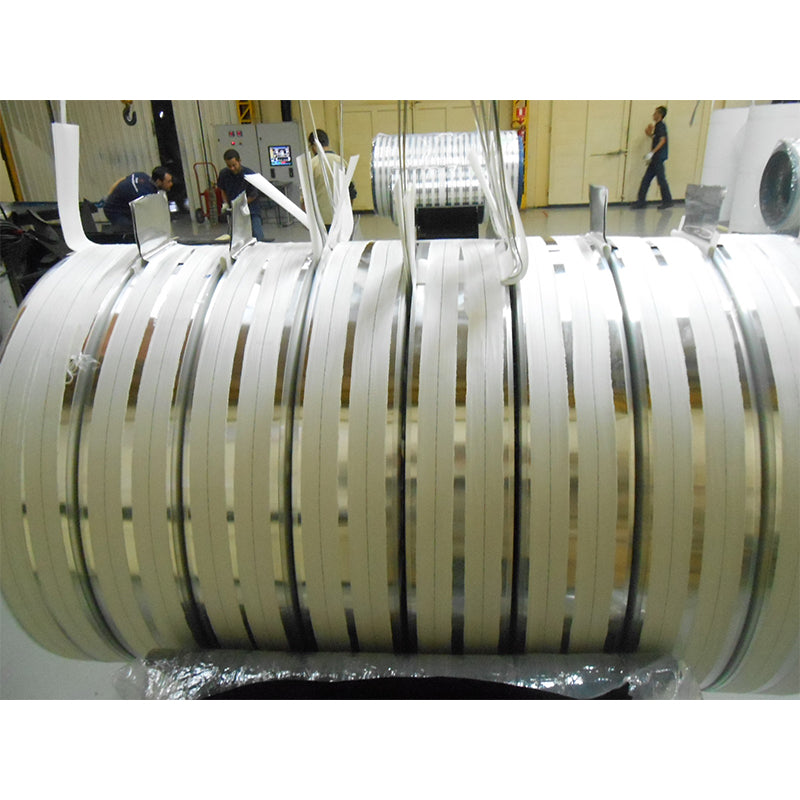

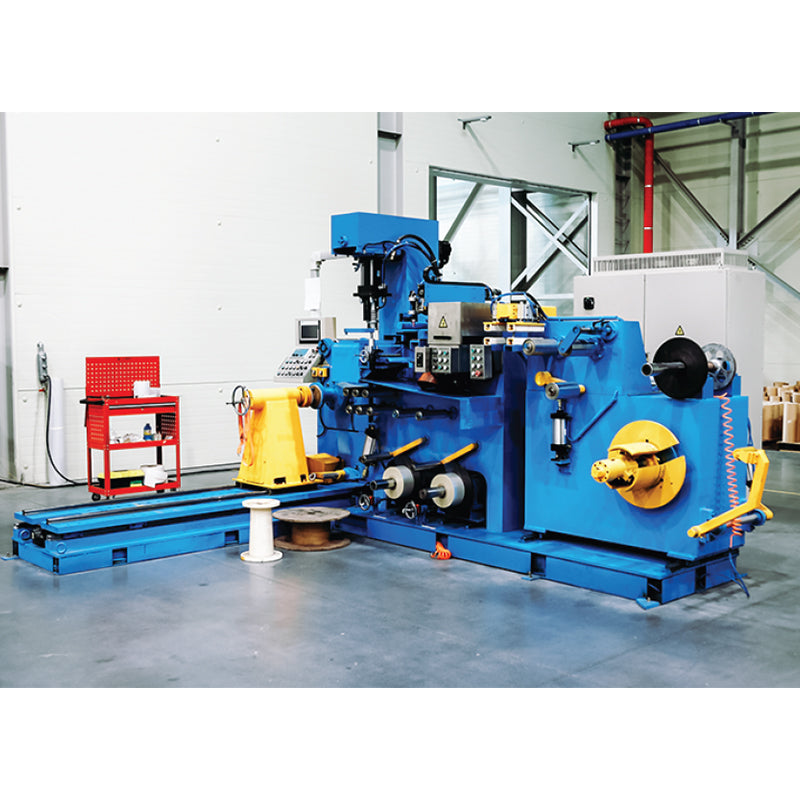

Based on the absorption and introduction of technologies from countries such as Germany and Canada, our company has developed and produced the GBRJ series of high-voltage foil winding machines. This series of machines incorporates the advantages of domestic similar products and is designed and manufactured according to user requirements. The high-voltage foil winding machine is specifically designed for efficient production of segmented, circular, and polygonal foil coils. The coils are single-layer copper or aluminum foil wound segmented coils, with a maximum of two layers of insulation between layers. The incoming and outgoing leads of the coils are welded using T1G protection welding machines. This series of foil winding machines is widely used in the production of dry-type transformers, special transformers, and reactors, significantly improving production efficiency. Equipment composition: The equipment consists of a unwinding system, a trimming system, a cutting system, a cleaning system, a winding system, an automatic moving system for reel collection, an inter-layer insulation system, and a touch screen operating system, etc.
Core advantages: 1. Foil tape constant tension system: The foil tape uses a motor to apply tension, and the tension is set numerically without mechanical friction mechanisms, ensuring constant tension;
2. Foil tape deviation correction system: The unwinding machine deviation correction system is responsible for eliminating the installation errors of the foil tape on the unwinding machine and the influence of uneven raw material ends on the neatness of the coil ends.
3. Main shaft coil: According to the width of the foil tape, the main shaft automatically moves axially according to the settings to complete the winding of multiple foil tape sheets.
4. Automation system: Through Siemens PLC, touch screen, bus communication technology, and remote control system, it can adapt to the digital MAS system of the factory, download orders and reporting functions.
