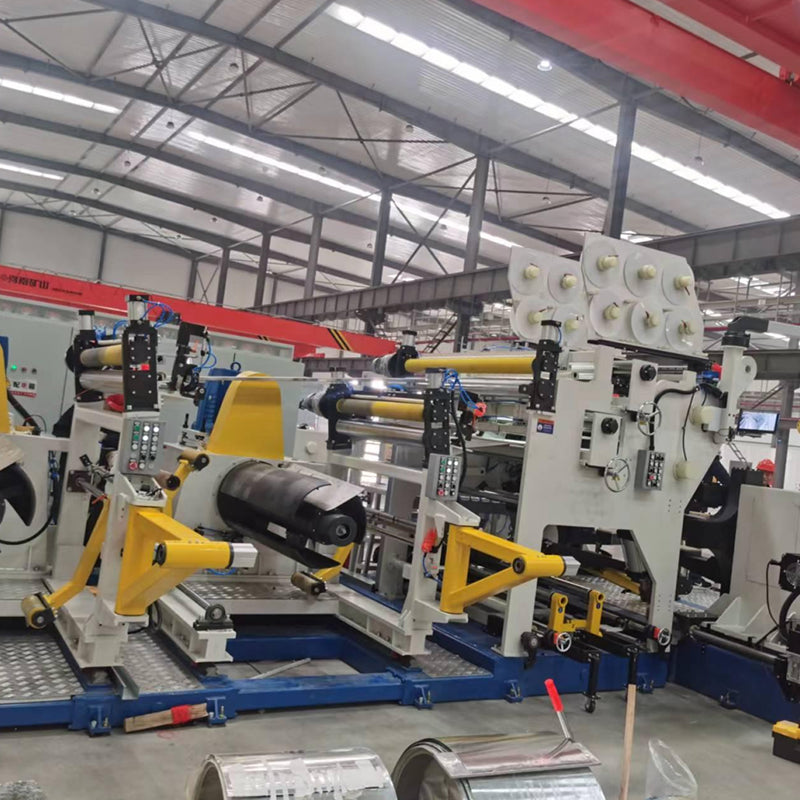

This equipment is used for winding single-layer and double-layer copper foil low-voltage foil-type coils. It is the largest model of foil winding machine ever invented in China. The equipment weighs up to 28 tons and is precisely manufactured, reaching the level of a "carrier-class" foil winding machine. The width of the foil strip reaches 1800mm, and the rotation diameter of the coil is 2000mm. The overall automation level of the machine is high. At the same time, it adopts the domestic首创 patented technology of integrated foil strip deviation correction and flattening to ensure the processing quality of the coils ......

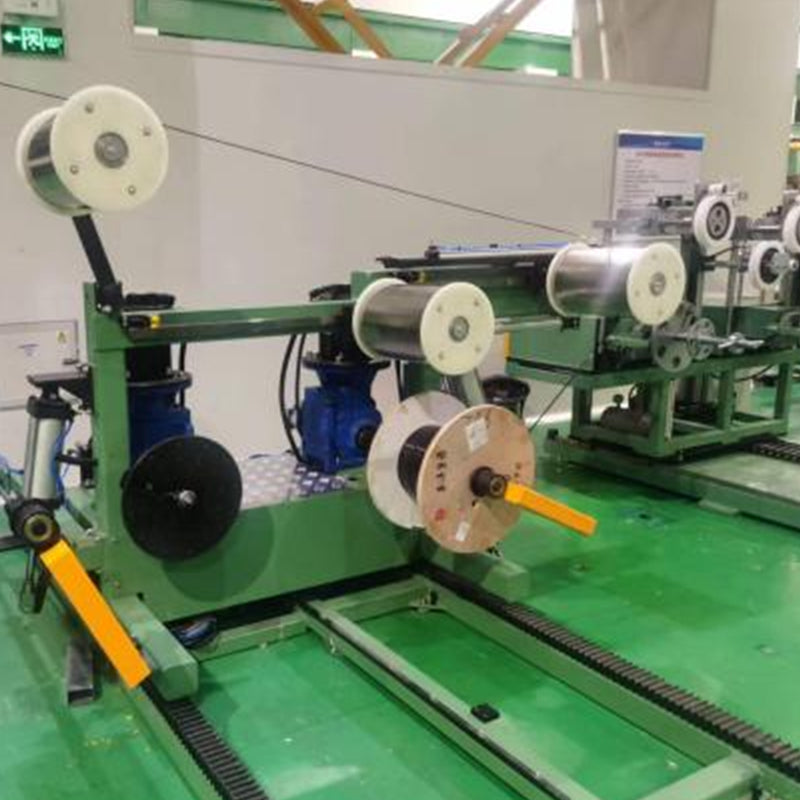

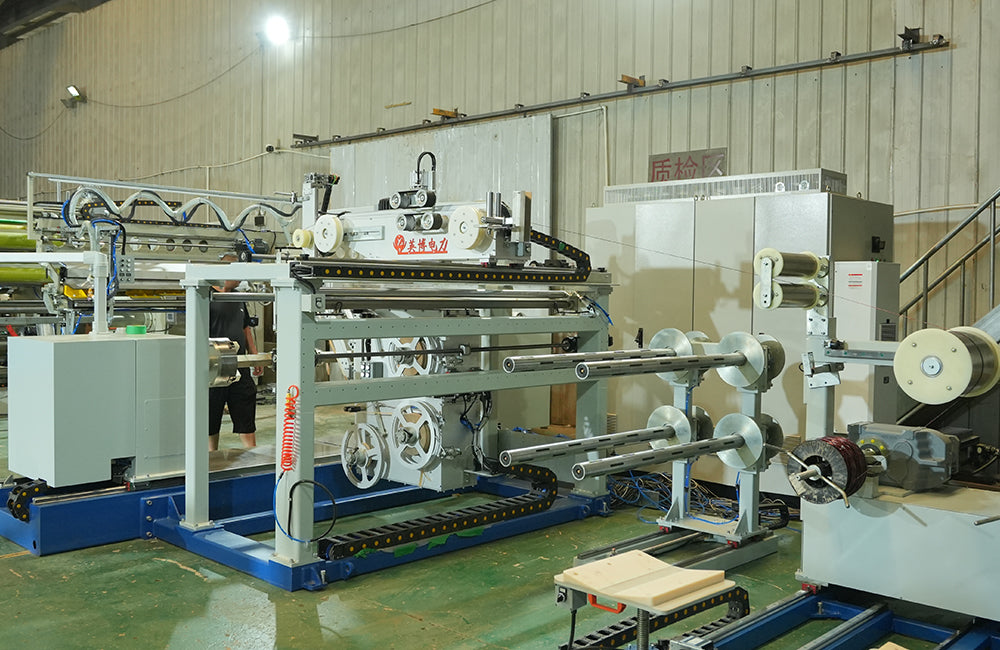

This series of winding machines come in various sizes (large, medium, and small), suitable for the automated winding of layer-type coils for transformers of different capacities. It adopts the Siemens PLC touch screen multi-axis numerical control system (fully servo bus control). Our company has mastered the algorithm for the conical insulation core of the equipment, and through sharing the algorithm program, it is easy to master the use of the equipment and achieve the goal of efficient, material-saving, and ......

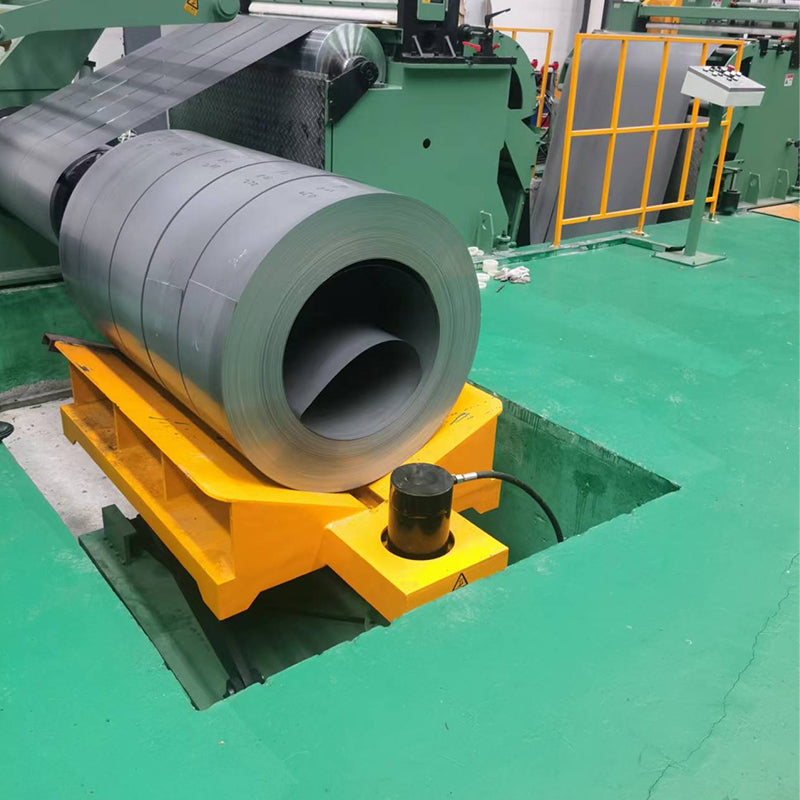

This production line is mainly used for the unwinding, longitudinal shearing and strip separation, and winding and forming of electrical silicon steel sheets. This equipment is an independently developed and designed product by our company based on the world-renowned brands of Germany Jorg and Belgium Sonnen, and it is the latest generation product at the leading level in China. The equipment has a simple foundation, is easy to operate, adopts the most advanced synchronous control principle, and realizes full-line linkage control. It can perform cutting without buffer pits during unwinding, and the shearing speed can run stably at 120m/min. Its performance far exceeds similar products in the domestic industry.
